Vertical natural gas traps Model: HLTS series

Nominal pressure(PN):16~40

Working pressure difference (Mpa): 0.01~0.8, etc

Displacement (m3/h): 8~20

Connection: flange, thread

Nominal size (DN): 25~80 etc

Operating temperature: normal temperature

Download Vertical natural gas traps Model: HLTS series
Features

1.Fully automatic continuous operation; discharges when condensate is present, closes when no condensate is present, with reliable drainage performance.

2.Dual‑guided mechanism ensures reliable operation and effectively prevents gas leakage during service.

3.Internal components are constructed entirely of stainless steel for long service life.

4.Excellent self‑cleaning performance with good wear and corrosion resistance.

5.Easy installation, stable operation, and convenient blowdown access.

Application: Suitable for automatic gas‑liquid separation where the specific gravity difference exceeds 0.3, facilitating effective recovery of the liquid‑phase medium.

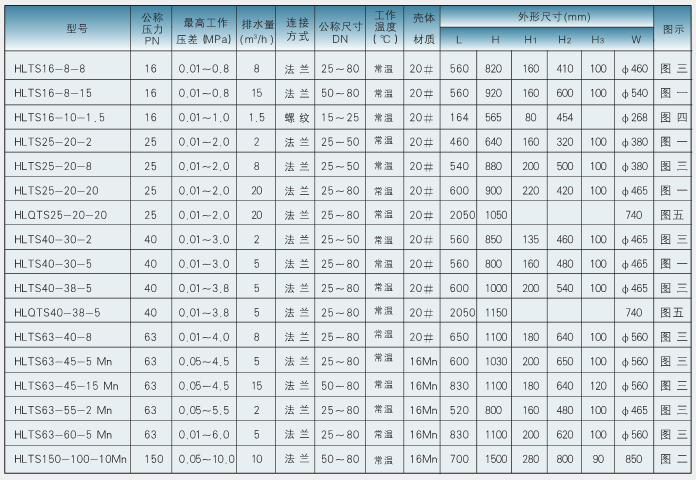

Selection cheat sheet
