AGSB12

Nominal size DN: 50~150

Connection: Flange (GB, ANSI, JIS)

Nominal pressure PN: 25

Differential pressure range MPa: 0.01~1.7

PMA/TMA  PMa/℃:1.7/260

Housing Material: WCB

Download AGSB12
Features

1.Capable of automatically discharging liquids with specific gravity ranging from 0.5 to 1.0 from gas systems.

2.Equipped with a pressure‑equalizing balance pipe to effectively prevent air binding.

3.Continuous discharge is achieved in response to flow variations, with the valve opening automatically adjusting accordingly.

4.Float offers high‑temperature and high‑pressure resistance with long service life.

5.Internal components are mounted on the valve cover, allowing maintenance and repair without removing the valve body from the piping.

Application: Suitable for acid gas equipment containing corrosive media in petroleum, chemical, metallurgical, electric power, and related industries.

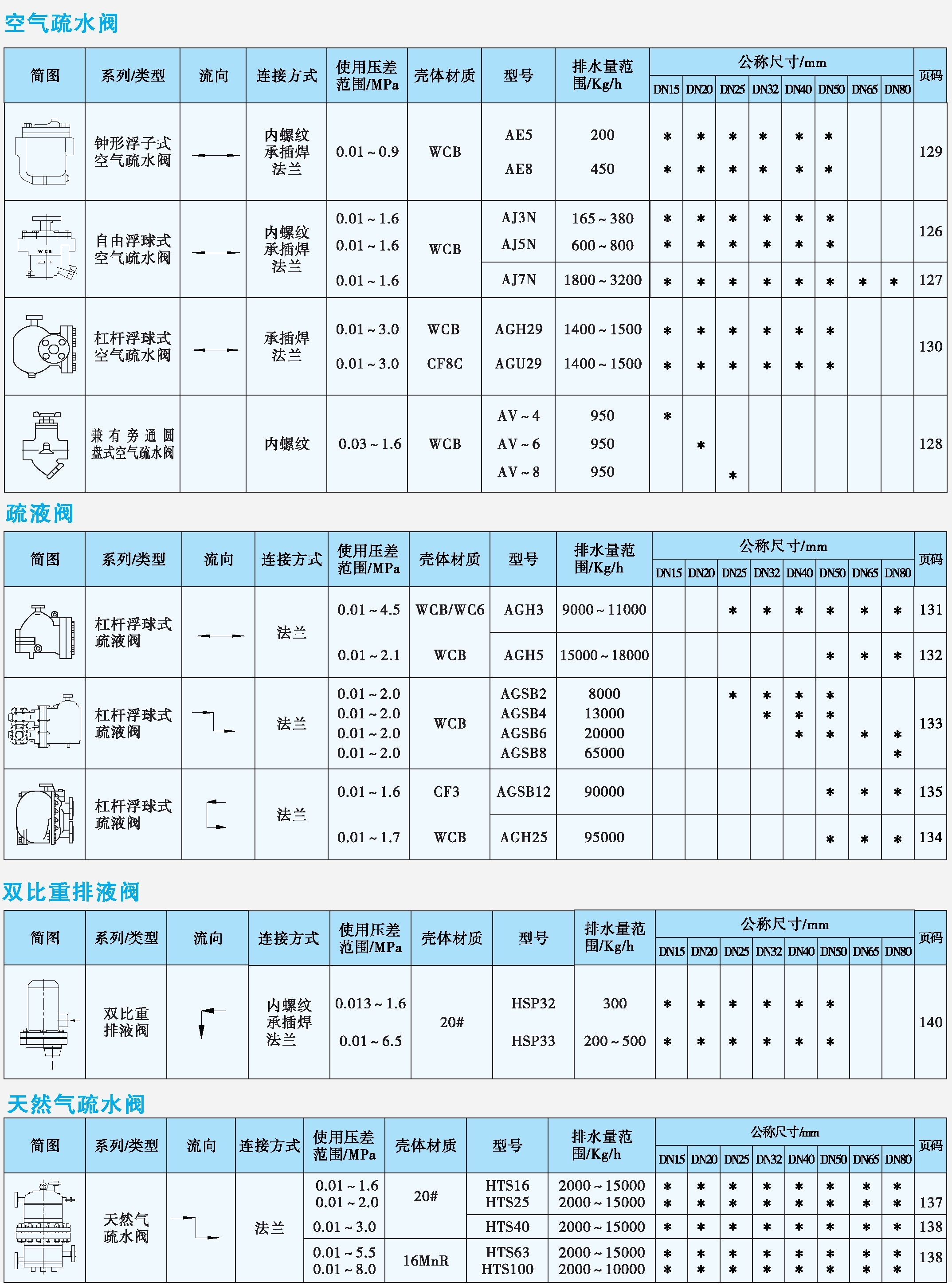

Air (natural gas) traps, traps, traps, drain valves selection cheat sheet
