JSS1(J4N)

Nominal size NPS: ½ ~ 1 ½ ~ 2 1¼ ~ 2

Connection mode: internal thread, socket welding, flange
Nominal pressure Class: 300
Pressure difference range bar: 1.0 to 16 1.0 to 25 1.0 to 40
PMA/TMA bar/℃ : 34.7/400 39.8/300
Shell material: WCB


Download JSS1(J4N)
Features

1.Float is manufactured from high‑precision ground stainless steel, offering high compressive strength, reliable sealing performance, and excellent corrosion resistance.

2.The float is the primary moving component, ensuring reliable operation and long service life.

3.Equipped with a manual air vent for rapid start‑up and effective prevention of air binding.

4.Condensate is discharged continuously with low noise levels.

Application: Suitable for saturated steam mains, tracing pipelines, steam heating equipment, and condensate recovery systems.

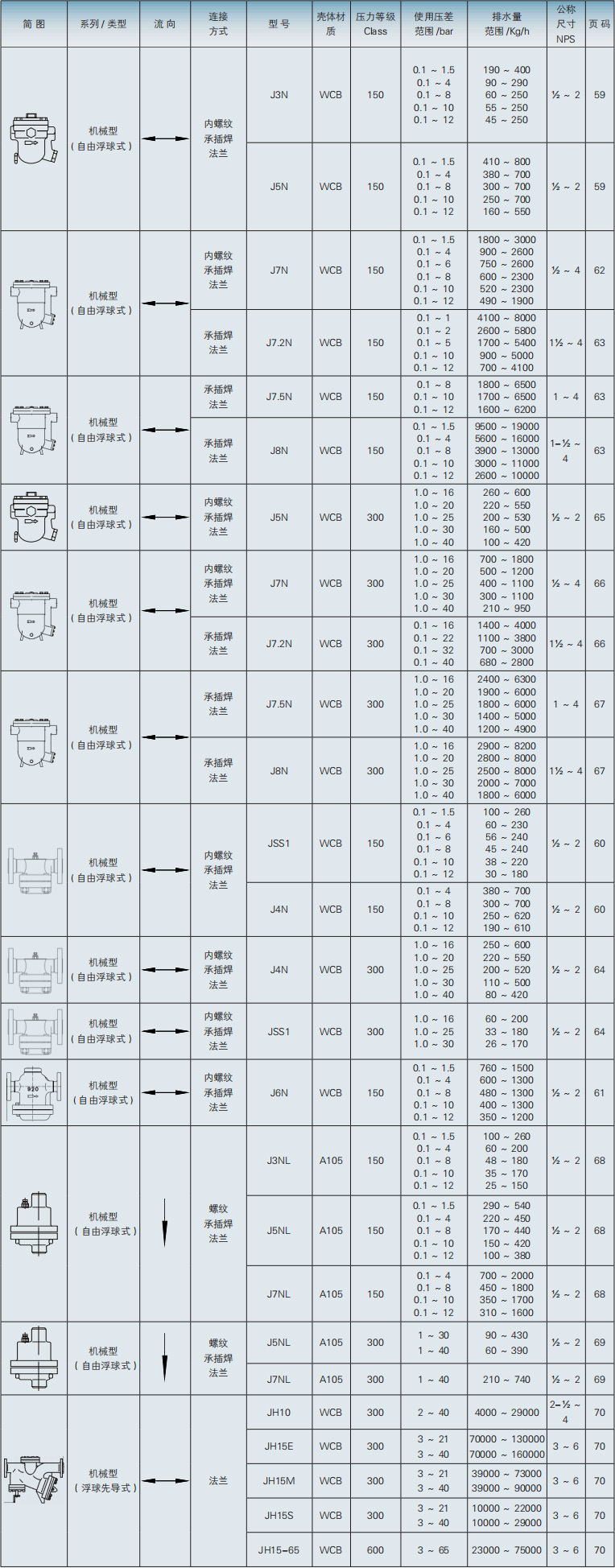

选型速查表
